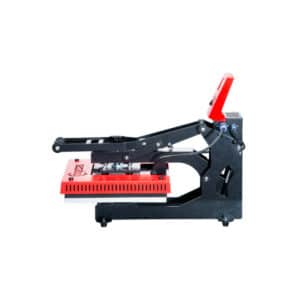

Secabo ® TC5 Smart Automatic Heat Press 38cm x 38cm

Product description

With its new TC5 SMART heat press, Secabo opens up new innovative paths leading to even better performance. This latest development of the successful automatic knee-lever press Secabo TC5 introduces a world novelty to the market, which opens up a variety of new options to users. The controller of the TC5 SMART now comes equipped with a Bluetooth interface that allows for controlling the press via the free app Secabo Smart Transfer, while also providing access to a comprehensive function database. This allows users to Simply enter the type of fabric and the transfer material and immediately retrieve the matching combinations of temperature, time and pressure.

Additional features, such as the calculation of heat-up times and warning functions, make the app a valuable assistant for all common heat transfer methods. The new heat press Secabo TC5 SMART offers a work surface of 38 x 38 cm, is easy to use and robust in ongoing operation. The modular design allows for quick and easy installation of removable plates in various formats, a quick change system and a slide extension.

Platen size

• 38 cm x 38 cm

Technical data

• Dimensions open: 41cm x 93cm x 67cm
• Dimensions closed: 41cm x 57cm x 73cm
• Working area: 38cm x 38cm
• Scope of delivery: Mechanical base, heating plate and base plate, controller box, C13 power supply cable, tools, operating instructions
• Pressure setting: the heating plate can be adjusted with a hand reel
• Max. downforce: 250 g / cm ²
• Max temperature: 225 °C
• Maximum time preset: 999 s
• Max. clam angle: 40 °
• Power supply: AC voltage 230V / 50Hz – 60Hz, 1.8kW
• Environment: +5°C – +35°C / 30% – 70% humidity
• Weight without packaging: 32,00 kg
• Weight with package: 39,00 kg
